Q) What is the correct way to connect a voltmeter to a circuit?
A) In parallel with the circuit
NJ2X Notes:
Connecting a voltmeter to a circuit in parallel allows the measurement of the voltage drop across the circuit.
A) In parallel with the circuit
NJ2X Notes:
Connecting a voltmeter to a circuit in parallel allows the measurement of the voltage drop across the circuit.
 |

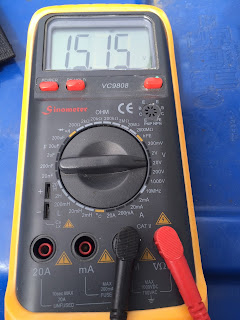

| Multimeter set to measure voltage |
